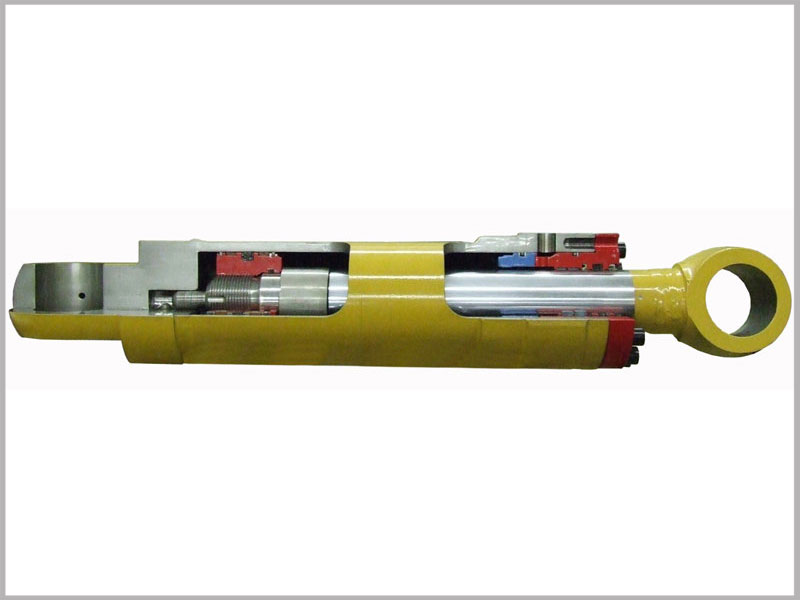

Clevis Mounted
Essem Engineers is one of the leading manufacturers of Clevis Mounted Hydraulic Cylinders. With cutting edge technology, efficient manpower and infrastructural capability to manufacture, our Clevis Mounted hydraulic cylinders find extensive applications in quite a few industries such as off-shore constructions, marines, chemicals and much more.
Features:
- Extensive applications in off-shore constructions, marines, chemicals and much more
- Product range in multiple specifications.

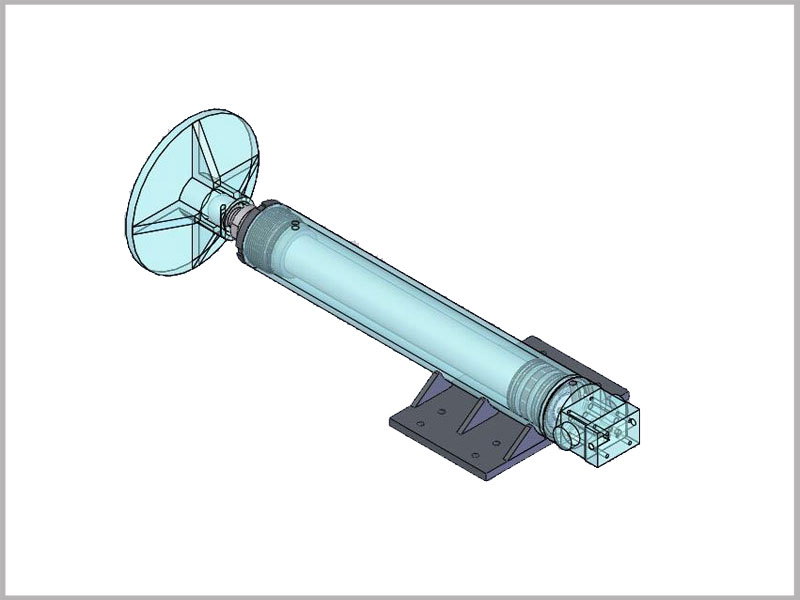

Foot Mounted
Made of premium raw materials using advanced technology, Essem Enginners has the expertise in manufacturing Foot Lug Mounted hydraulic cylinders. Critically appreciated for powerful structure, wear and tear resistant and efficient performance, the hydraulic tie rod cylinder, welded hydraulic cylinders are offered in different bore size.
Features:
- Used in manufacturing different types of hydraulic systems
- Offered in various specifications and configurations
- Can be customized as per the end-users requirements

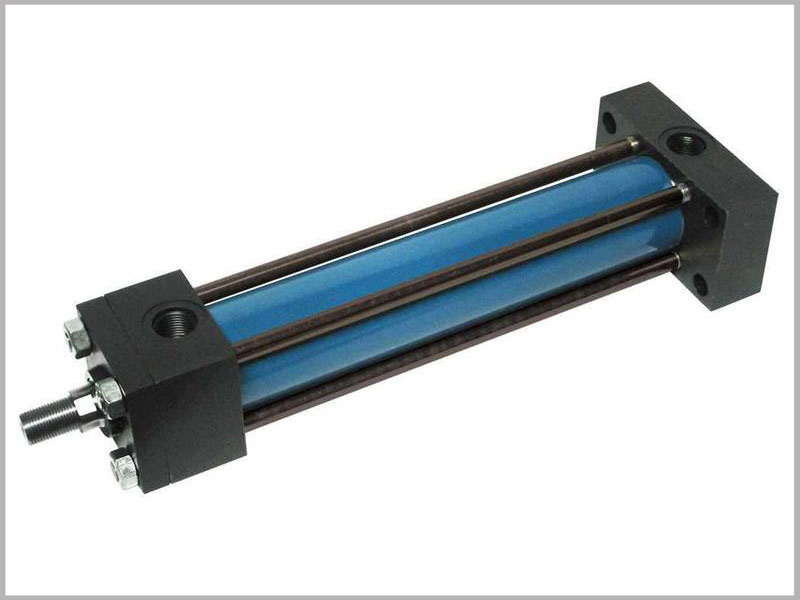

Hydraulic Cylinder Tie Rod
With varied specification, we manufacture and supply Hydraulic Cylinder Tie Rod as Single Acting Double Acting Mounting offered with 200 kg / CM2 Working Pressure. We offer customization facility to address unique requirements of clients with bore size up to 500 mm as per customer requirement.
Features:
- Standard & Customized as per requirement
- Single or double acting
- Bore: 25 to 400 mm diameter
- Stroke: Up to 3000 mm
- Mounting: 6 standard mounting
- Working pressure: Up to 250kg/cm

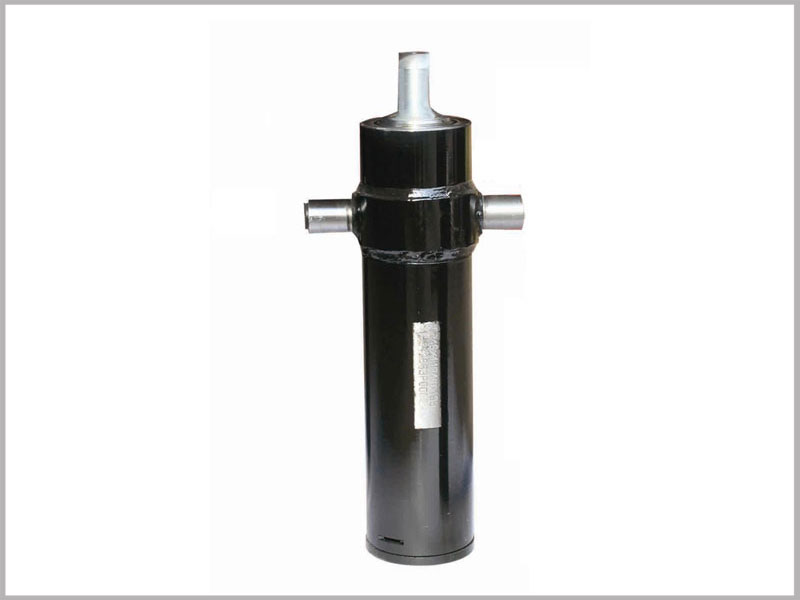

Trunnion Mounted
Our wide choice for trunnion mounted hydraulic cylinders is reputed for efficient performance, durability and forceful construction. To supply our clients with most effectiveness, we manufacture our range as per their designs and specifications. Trunnion Mounted Hydraulic Cylinders from Essem Engineers finds application in numerous industry verticals.
Specifications:
- Nominal pressure: 25, 0 MPA (250 bar 3525 psi)
- Static test pressure: 28, 00 MPA (280 bar 3948 psi)
- Mounting position: Optional
- Hydraulic fluid: Mineral oil to DIN 51 524
- Fluid temperature Range:- 30 ° C to + 100 ° C
- Stroking speed: Up to 1, 0 m/s
Telescopic Hydraulic Cylinder
Our manufacturing unit with efficient man power, latest technology and equipment, manufacture an extensive range of Telescopic Hydraulic Cylinder, combining stable and robust design with distortion free shearing. With option of manufacturing as per standard and customized specifications, we also offer telescopic hydraulic cylinders with single end porting.
| |
Single Action |
Single Action |
Double Action |
Number of stage |
03 |
02 |
06 |
Max dia of Base tube |
140 mm |
140 mm |
200 mm |
Min dia of ram (minimum) |
57 mm |
|
50 mm |
Total Stroke |
6170 mm |
6500 mm |
3200 mm |
Min. length of cylinder |
2330 mm |
4000 mm |
930 mm |

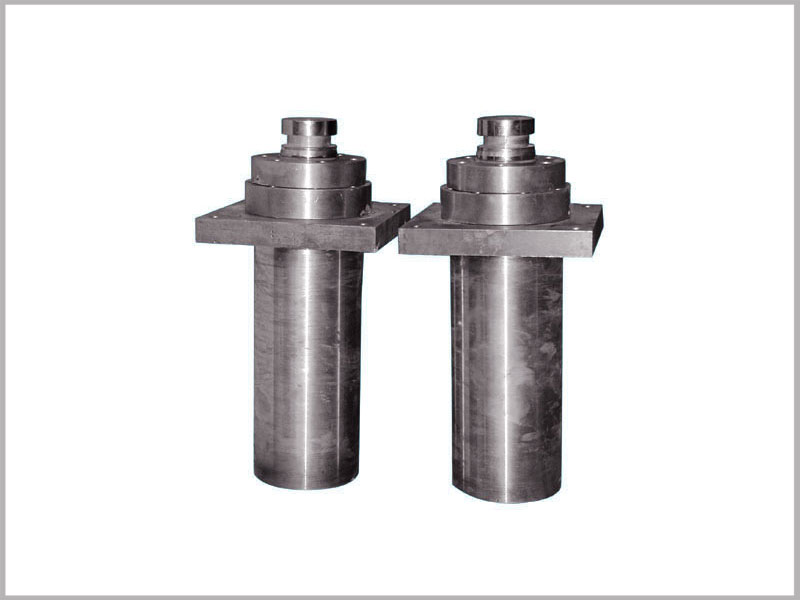

Welding Flange Construction
Essem Engineers is engaged in offering widespread range of Welding Flange Construction Cylinder. Welding Flange Construction Cylinders offer perfect solutions to such areas that need accurate cylindrical functions. Using most advanced technology, these cylinders are appreciated for lasting services, ability to withstand wear and tear and design perfection.
Specifications:
- Stroke: Up to 2 meter
- Bore size: 50mm-500mm
- Type: Single acting, double acting, thro rod
- Mounting: front flange, rear flange, pi pot type foot mounting, trunnion type etc.
- Working pressure: up to 3000 psi
